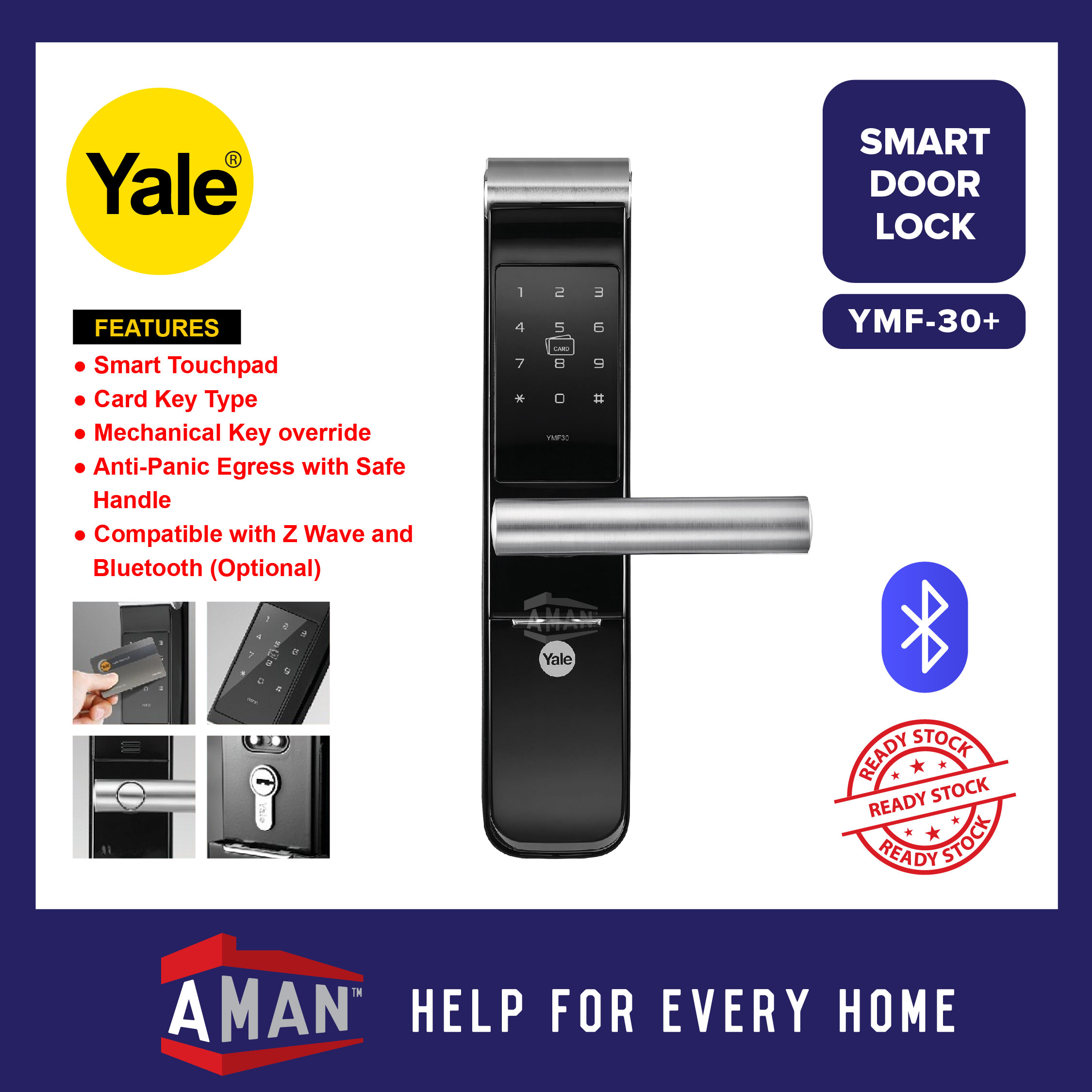

YALE Premium Proximity Card Smart Digital Mortise Door Lock YMF-30+

~ Ready Stock ~

【Premium Proximity Card Lever Mortise Digital Door Lock】

✔FREE INSTALLATION within Klang Valley.

✔Other region please chat with us.

✔MUST use Alkaline battery to secure warranty.

✔Lever Lock

✔PIN Code

✔RFID Card

✔Smart Connectivity

✔Mechanical Key

✔Fake PIN Code

✔Emergency power

✔100% Original YALE

【Features】

✔Voice Guidance

Whenever any operation is made, the keypad informs you what is happened though different alignment of the numbers.

✔Automatic Locking

The Yale series automatically locks the door after checking it is properly closed. (Manual operation is also available.)

✔Anti-Panic Egress

For convenience and emergency, the door is automatically unlocked whenever the inner lever handle is used. Also, safe handle will protect you from any break-in attempts.

✔Alarm (Break-in / Damage)

80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects over 55°c.

✔Fake PIN Code

To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.

✔Low Battery and Emergency Power

It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.

✔Operation Status Notification

Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

✔Remote Control (Optional)

Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.

✔Bluetooth Module (Optional)

Bluetooth communication module allows lock to communicate and be controlled via a Smart Phone (within Bluetooth range of the lock) using the Yale Link Apps.

✔App Link Apps (Optional)

Works with Yale Link Apps to access your lock remotely (To access Yale Link Apps function, user would need Yale Wi-Fi Bridge and Yale Bluetooth Module available under Accessory Section)

【Access Credential】

Fingerprints: No

PIN Code: Available

RFID Card: Available

Mechanical Key Override: Available

Bluetooth: Available (Optional - Purchase Separately)

Wi-Fi Connection: Available (Optional - Purchase Separately)

Remote Control: Available (Optional - Purchase Separately)

【Maximum No. of Users】

Fingerprints: No

PIN Code: Up to 30 Users

RFID Card: Up to 40 Users

Mechanical Key Override: 2 Keys

One Time Code: 1 Only

【Specifications】

Model: YMF-30+

Color: Black

Locking Type: Mortise

Backset: 60 / 70mm

Door Thickness: 40 - 65mm

Battery: Alkaline (AA x 4)

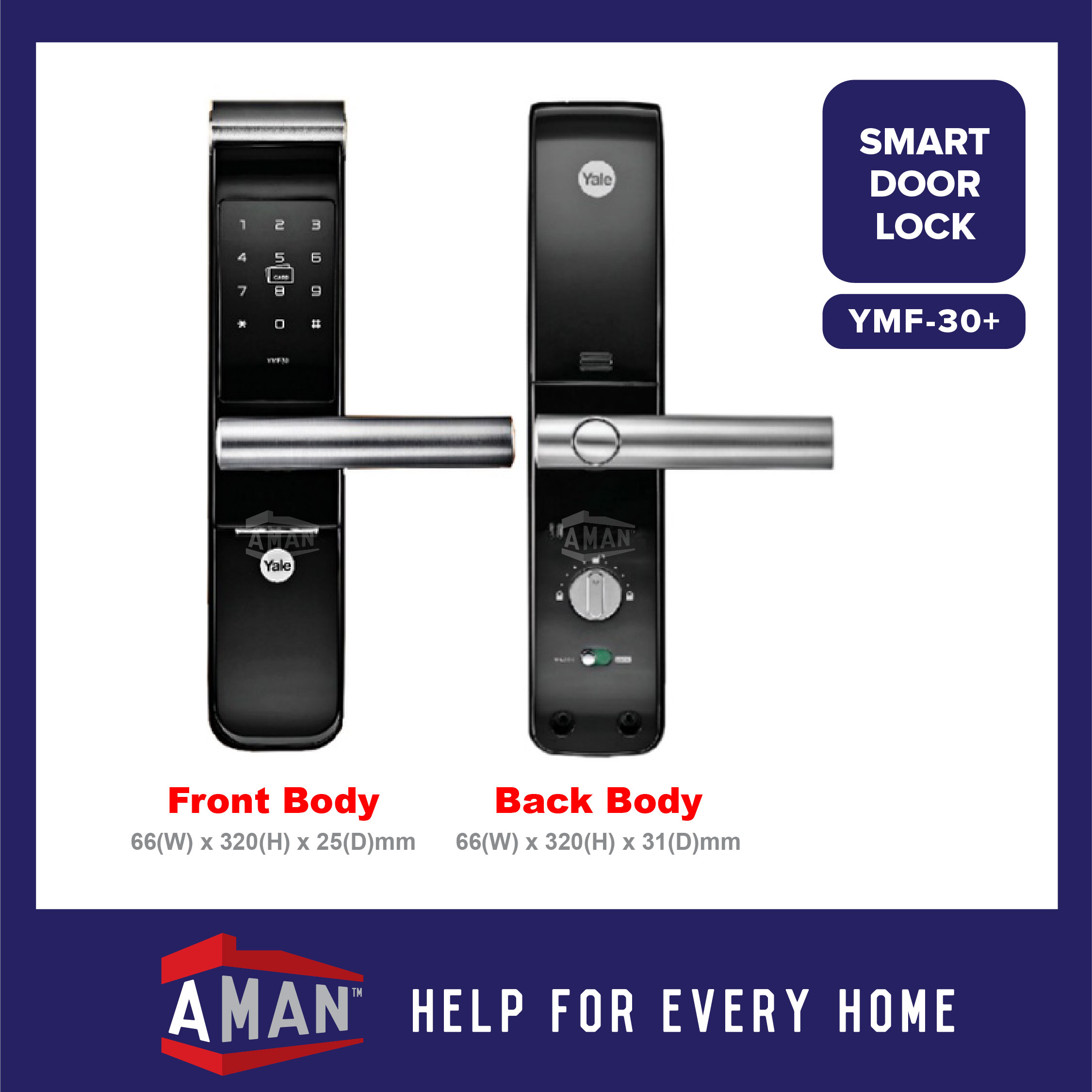

Size (Front): 66 (W) x 320 (H) x 25 (D) mm

Size (Back): 66 (W) x 310 (H) x 31 (D) mm
