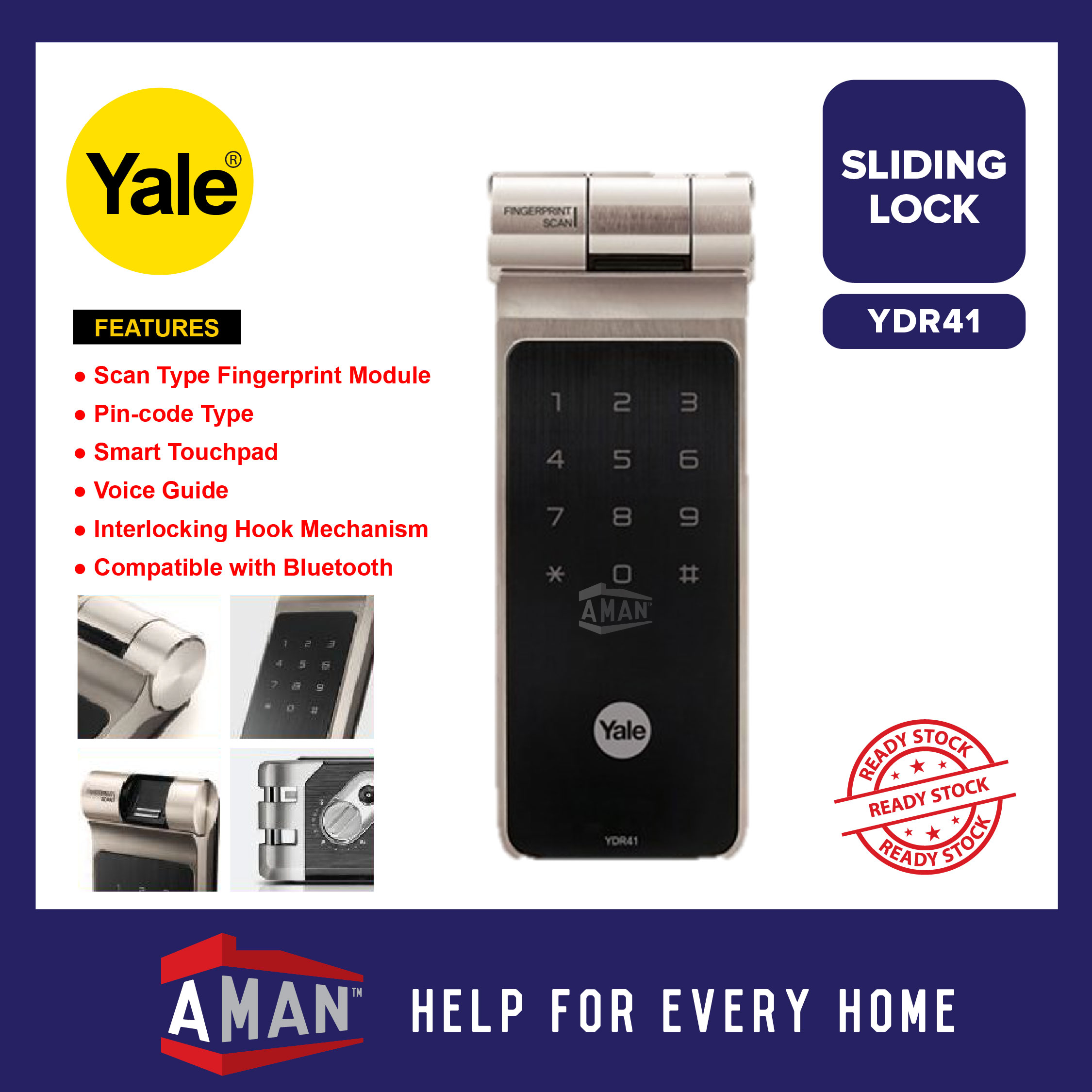

YALE Intelligent Biometric Fingerprint Digital Rim Lock Jimmy Proof Sliding Door Compatible Door Lock YDR-41

~ Ready Stock ~

【YALE Fingerprint Intelligent Biometric Digital Rim Lock】

✔FREE INSTALLATION within Klang Valley.

✔Other region please chat with us.

✔2 Year Warranty.

✔MUST use Alkaline battery to secure warranty.

✔100% Original YALE

✔Sliding Door Compatible

✔Fingerprint

✔PIN Code

✔Emergency Power

【Features】

✔Voice Guide

The voice guide is offered that let you know the operation status how to set each features, mode for easier and more convenient use.

✔Automatic Locking

The YALE series automatically locks the door after checking it is properly closed. (Manual operation is also available.)

✔Alarm (Break-in / Damage)

Audible alarm sounds if attempting for forcibly remove outside lock from door.

✔Fake PIN Code

To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.

✔Low Battery and Emergency Power

When battery power is low, the Low Battery Warning indicator flashes RED. If battery power is completely lost, use the 9Volt battery override. Try to use 9V battery override apply 9V battery, in either direction, to terminals below the touchscreen for backup power option. Wake up the lock and enter your code to unlock the door.

✔Operation Status Notification

Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.

✔Remote Control (Optional)

Remote control type is also available. Wireless Floating ID technology is adopted and works up to 50m.

✔Bluetooth Module (Optional)

Bluetooth communication module allows lock to communicate and be controlled via a Smart Phone (within Bluetooth range of the lock) using the YALE Link Apps.

✔App Link Apps (Optional)

Works with YALE Link Apps to access your lock remotely (To access YALE Link Apps function, user would need YALE Wi-Fi Bridge and YALE Bluetooth Module available under Accessory Section)

【Access Credential】

Fingerprints: Available

PIN Code: Available

RFID Card: No

Mechanical Key Override: No

Bluetooth: Available (Optional - Purchase Separately)

Wi-Fi Connection: Available (Optional - Purchase Separately)

Remote Control: Available (Optional - Purchase Separately)

【Maximum No. of Users】

Fingerprints: Up to 20 Users

PIN Code: Up to 30 Users

RFID Card: No

Mechanical Key Override: No

One Time Code: 1 Only

【Specifications】

Model: YDR-41

Color: Silver

Locking Type: Rim Lock

Backset: 50 / 60mm

Door Thickness: 30 - 57mm

Battery: Alkaline (AA x 4)

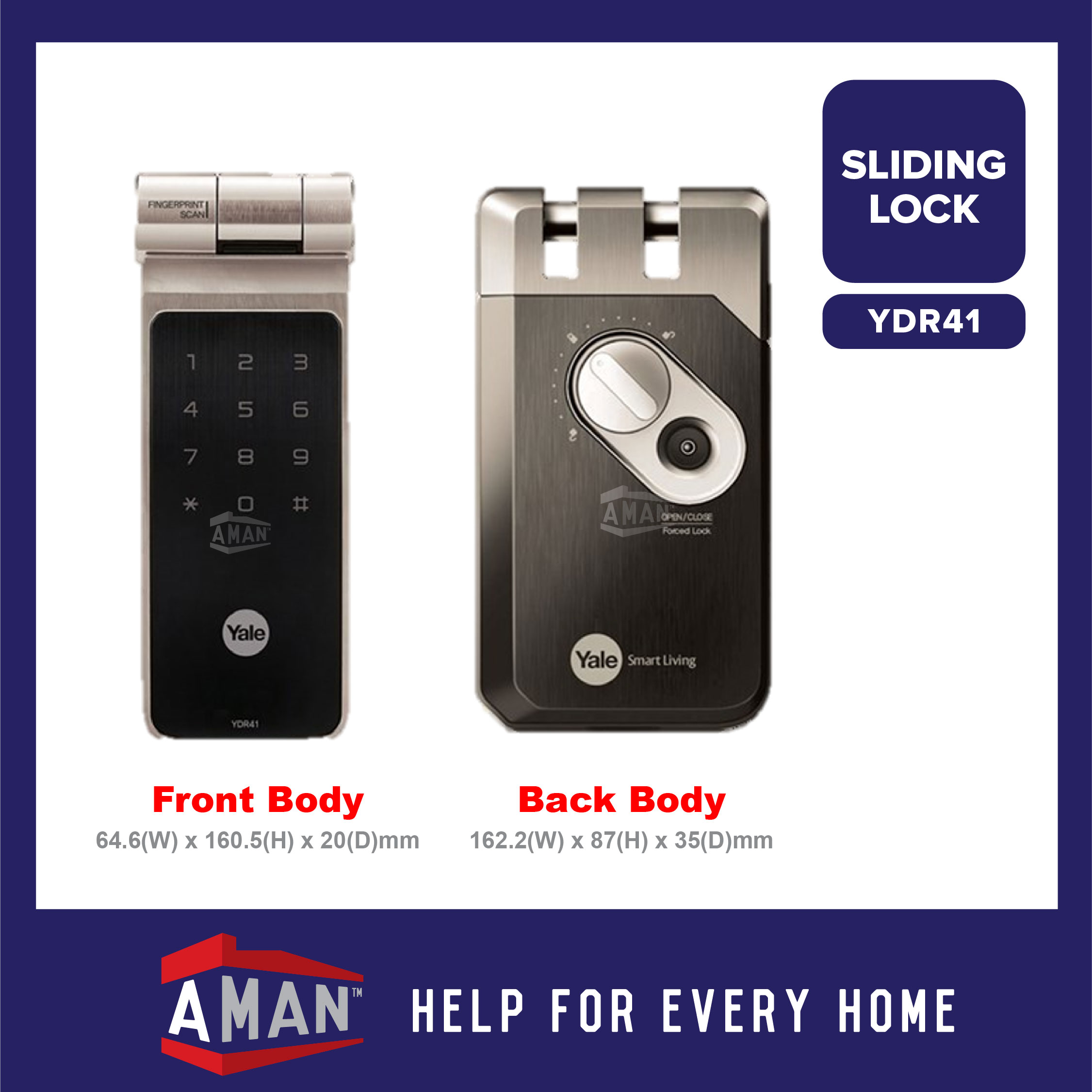

Size (Front): 64.6 (W) x 160.5 (H) x 20 (D) mm

Size (Back): 162.2 (W) x 87 (H) x 36.4 (D) mm
